CENTINEL

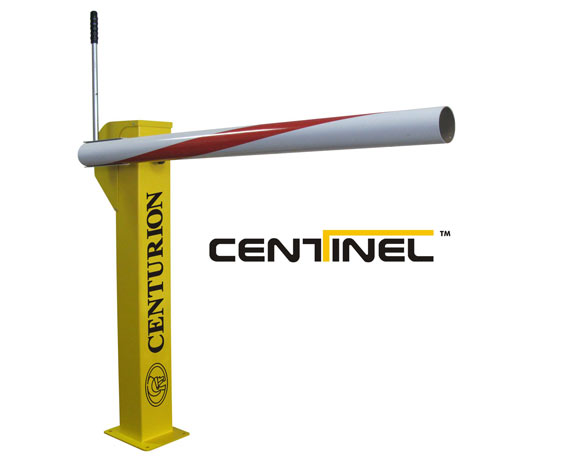

CENTINEL MANUAL BARRIER - MANUAL TRAFFIC BARRIER

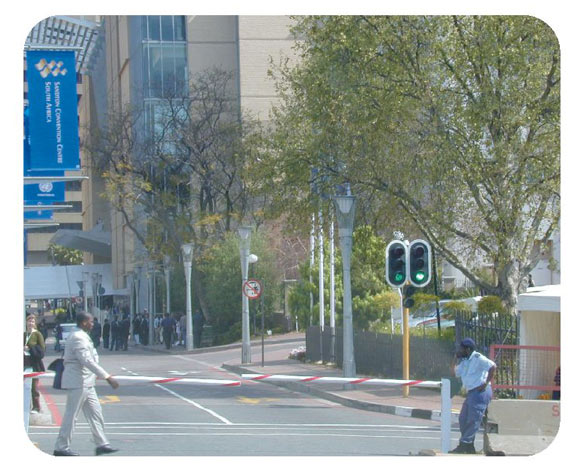

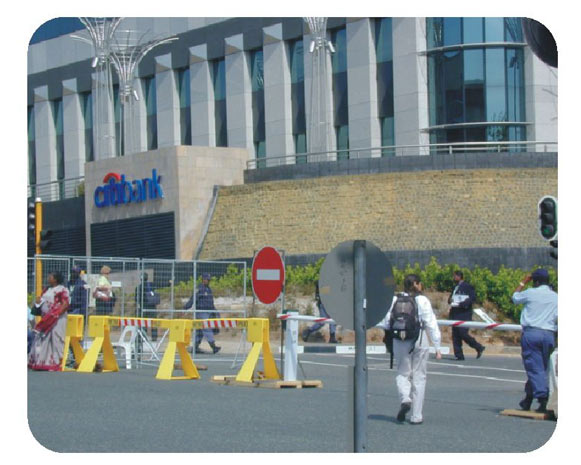

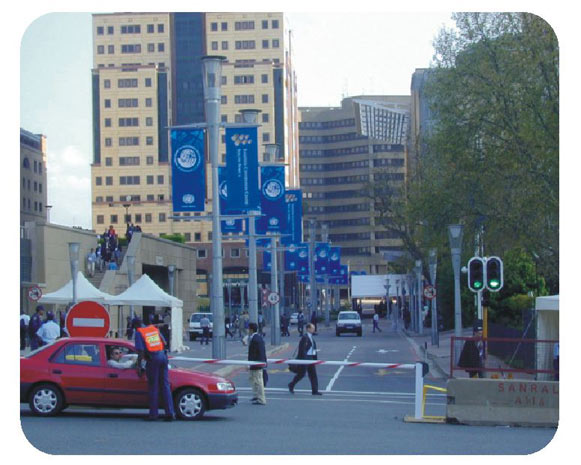

If the requirement is to cordon off a parking lot or entrance to a housing estate where a manned guard is always present, then the CENTINEL manual barrier is a perfect cost-effective answer.

The CENTINEL is available with 3, 4.5 and 6 metre boom pole lengths. Using an internal spring the CENTINEL avoids the use of unsightly weights to counterbalance the boom pole. This results in a particularly compact and aesthetically pleasing barrier befitting the entrance to any up-market installation.

Main features

Internal spring counterbalance
Attractive slim-line construction
Convenient actuating handle for raising boom pole
Thumbwheel to secure pole in raised or lowered position

Models

CENTINEL 3 - Manual Barrier, 3m boom pole
CENTINEL 4 - Manual barrier, 4,5m boom pole
CENTINEL 6 - Manual barrier, 6m boom pole

Technical Details

CENTINEL's Technical Data

Data	CENTINEL 3	CENTINEL 4	CENTINEL 6
Counterbalance spring	Internal
Boom pole length	3.0m	4.5m	6.0m
Boom pole raise time	1.2 sec	3 sec	3 sec
Housing specification	Epoxy coated mild or grade 3CR12 stainless steel – white, red cover
Barrier Pole Specification	Aluminium, round profile, epoxy coated white, red reflective tape
