D10

INDUSTRIAL SLIDING GATE OPERATOR

Main features

Battery backup
Rapid operating speed
Intelligent speed control
High duty cycle capability
Smooth acceleration and deceleration
Multiple operating features, including alarm modes

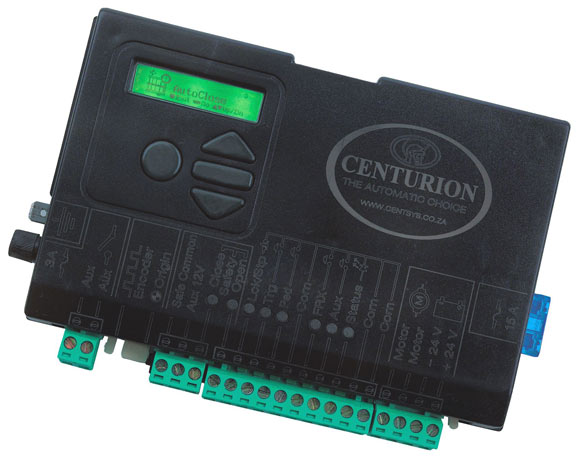

Exceptionally easy system set up via LCD user interface
Onboard NOVA multichannel receiver with selective delete
Integral ChronoGuard TM (patent pending) timer functionality

Models

D10 - Using CENTURION’s proven DC technology, this is the complete solution for commercial and industrial gates up to 1000kg

Technical Details

D10's Technical Data

Data	Description
Input voltag	220V AC +/-10%, 50Hz
Motor voltage	24V DC
Motor power supply	Battery Driven – 1.8A charger
Push force – rated	30kgf
Gate speed (varies with load)	22 - 26m/min
Duty cycle - mains present	45%
Daily operations – max	750
Gate mass - max	1000kg
Onboard receiver specification	NOVA rolling code ,multichannel, 433MHz, capacity - 500 transmitter buttons

- Can operate off a solar supply, consult Centurion Systems for assistance
- 2 x 7Ah battery (can be upgraded for longer power failure autonomy)
- Based on a pull force of less than 50% of rated
- Based on 25oC ambient temperature and unit not in direct sunlight
- Keeloq TM encryption
