D5-Evo

DOMESTIC AND LIGHT-INDUSTRIAL SLIDING GATE OPERATOR

Main features

Models

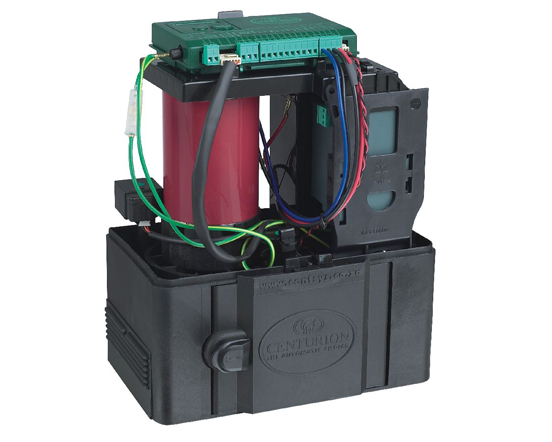

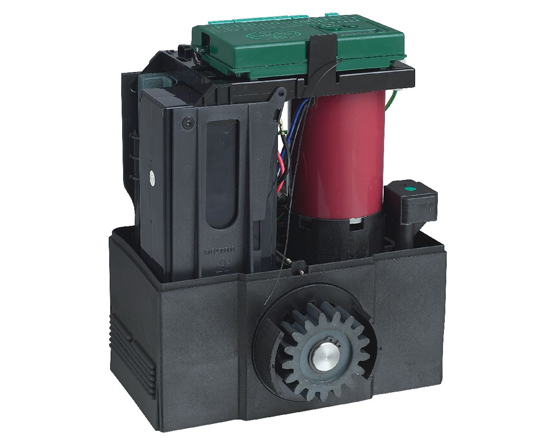

D5-Evo – The evolution of the tried and tested D5, 500kg gate operator for domestic and light-industrial applications

Technical Details

D5-Evo's Technical Data

Data	Description
Input voltag	220V AC +/-10%, 50Hz
Motor voltage	12V DC
Motor power supply	Battery driven – 2A charger
Push force – rated	17kgf
Gate speed at push force < 5kgf	22m/min
Gate speed at rated push force	18m/min
Duty cycle - mains present	50%
Daily operations – max	150
Gate mass - max	500kg
Onboard receiver specification	NOVA rolling code,multichannel, 433MHz, capacity - 125 transmitter buttons

- Can operate off a solar supply, consult Centurion Systems for assistance

- 2 x 7Ah battery (can be upgraded for longer power failure autonomy)

- Based on a pull force of less than 50% of rated

- Based on 25oC ambient temperature and unit not in direct sunlight

- Keeloq TM encryption
