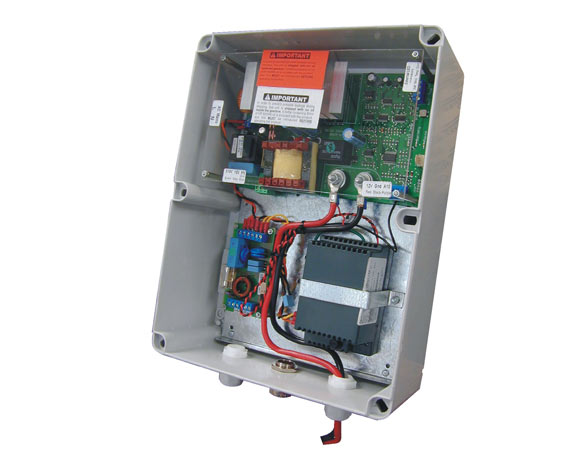

DC CONVERTER BATTERY BACKUP MODULE FOR THE A10

A simple connection that enables your A10 to stay on guard when the lights go off

Main features

On-demand battery backup protection
Brown-out power failure detection
Battery-protection circuitry
Thermal overload cut-out
Integral battery charger
Power-saving mode
System diagnostic outputs

Technical Details

DC CONVERTER BATTERY BACKUP MODULE's Technical Data

Data	Description
Input voltage DC Converter Battery charger	12V DC 220V AC +/-10%, 50Hz
Input current DC Converter at rated load Battery charger	80A peak / 30A continuous 170mA
Battery charger output	2A
Operating cycles per Ah of capacity	Min 1 open/close cycle
Duty cycle	20%
Battery capacity	Min 12Ah but 35Ah is recommended

- Can operate off a solar supply, consult Centurion Systems for assistance
- Based on 25oC ambient temperature and unit not in direct sunlight
- Battery housed in separate enclosure
