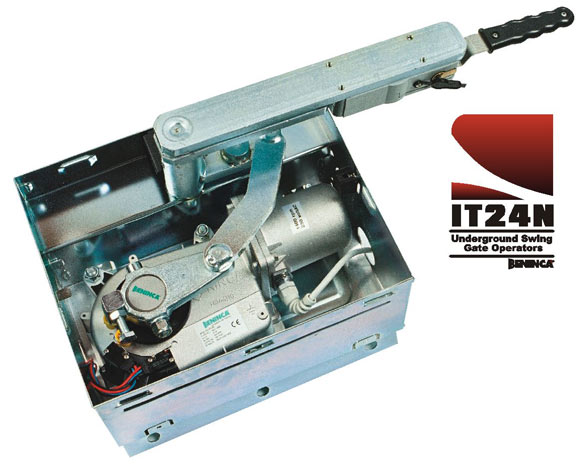

IT24N - Underground Swing Gate Operator

IT24N - DOMESTIC AND LIGHT-INDUSTRIAL UNDERGROUND SWING GATE OPERATOR

Main features

Battery backup
Safe, quiet and reliable operation
Hidden from view, unaffecting aesthetic appeal of gates
Automate gates with limited to no side wall space
Extremely potent and reliable motor reduction unit
Multiple operating features

Models

IT24N – Powerful underground swing gate operator for domestic and light-industrial application.

Technical Details

IT24N's Technical Data

Data	Description
Input voltage	220V AC +/-10%, 50Hz
Motor voltage	24V DC
Motor power supply	Battery driven - 1A charger
Operator output torque – max	360Nm
Typical gate opening time	< 20 sec
Duty cycle - mains present	50%
Daily operations – max	200
Maximum leaf width for corresponding gate mass	2m - 550kg 3.5m - 400kg

- Can operate off a solar supply, consult Centurion Systems for assistance
- Battery driven with 2 x 7Ah battery (can be upgraded for longer power failure autonomy)
- Based on 25oC ambient temperature and unit not in direct sunlight
- Assumes a 90o opening gate and optimum mounting position
