R5 - Rotary Swing Gate Operator

R5 - DOMESTIC AND LIGHT-INDUSTRIAL ROTARY SWING GATE OPERATOR

The smooth operator for swing gates

The R5 is well suited for higher volume sites such as entrances to housing estates and business parks. It can handle gates up to 3.5m wide per leaf weighing no more than 250kg.

The R5 also offers battery back-up and with the electronic controller and power supply mounted in the Master motor and with the option to wall mount the operator, installation is greatly simplified.

As with the sliding gate range of operators, these battery driven swing gate units can also be adapted to operate off a solar power supply

Main features

Battery backup
Full position control
Safe and quiet functioning
Fast and smooth operation
Multiple programmable features

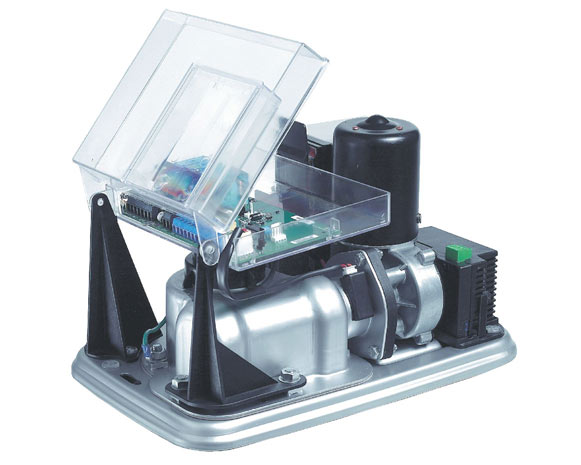

Master motor with integrated controller and PSU

Models

R5 – This unit is well suited for large domestic and light-industrial swing gates

Technical Details

R5's Technical Data

Data	Description
Input voltage	220V AC +/-10%, 50Hz
Motor voltage	12V DC
Motor power supply	Battery driven - 2A charger
Operator output torque – max	250Nm
Typical gate opening time	< 17 sec
Duty cycle - mains present	50%
Daily operations – max	250
Maximum leaf width for corresponding gate mass	2m - 600kg 3.5m - 260kg

- Can operate off a solar supply, consult Centurion Systems for assistance
- 7Ah battery (can be upgraded for longer power failure autonomy)
- Based on 25oC ambient temperature and unit not in direct sunlight
- Assumes a 90 degree opening gate and pedestal mount
