XTrac

XTRAC - DOMESTIC SECTIONAL AND TIP-UP GARAGE DOOR OPERATORS

Main features

Battery backup (dual power)

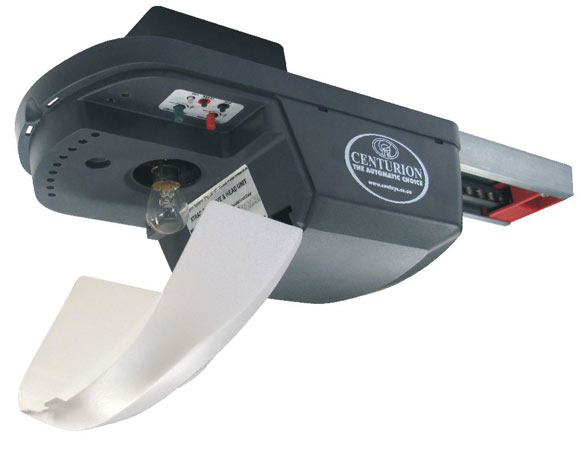

Easy access to setup buttons and replacement of light bulb
Door service monitor
Effortless door operation
Smooth ramp up and ramp down
Adjustable speed control
Whisper quiet movement
Quick and easy installation
Adaptive anti-crushing protection
Wireless wall pendant with dual buttons

Models

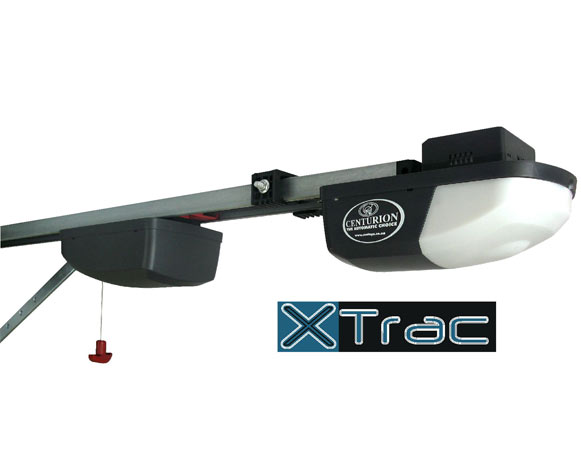

XTrac - Quiet, Safe and reliable garage door operator for majority of sectional and tip-up doors.

Technical Details

XTRAC's Technical Data

Data	Description
Input voltage	90 – 290V AC @ 50/60Hz
Motor voltage	24V DC
Motor power supply	Dual supply – 9A powerpack 1.8A charger
Opener lifting force – max	120kgf
Door travel speed	100-150mm/sec (adjustable)
Duty cycle - mains present	20%
Daily operations - max	20
Maximum door size	12m2 – (max width 6.5m)
Onboard receiver specification	NOVA rolling code ,single channel, 433MHz, capacity - 28 transmitter buttons capacity

- Can operate off a solar supply, consult Centurion Systems for assistance
- 2 x 1.2Ah batteries (can be upgraded for longer power failure autonomy)
- Based on 25oC ambient temperature
- Based on a pull force of less than 50% of rated
- Keeloq TM encryption
- Only 1 button per transmitter is used
